Cold Heading Part Manufacturing

As an engineer researching cold heading wire, you must consider several technical standards that apply to this process.

Here are some standards relevant to cold heading wire:

  1. ISO 898-1: Mechanical properties of carbon steel and alloy steel fasteners. This standard covers the requirements for properties such as tensile strength and hardness, which are crucial for cold-headed fasteners.
  2. ASTM A29/A29M: Standard Specification for General Requirements for Steel Bars, Carbon and Alloy, Hot-Wrought. This standard specifies the requirements for steel bars and rods that might be used in cold heading.
  3. ASTM A108: Standard Specification for Steel Bar, Carbon, and Alloy, Cold-Finished. This standard applies to the cold-finished steel bars used in cold-heading processes.
  4. ASTM F2282: Standard Specification for Quality Assurance Requirements for Carbon and Alloy Steel Wire, Rods, and Bars for Mechanical Fasteners. This standard addresses the quality assurance requirements for the materials used in cold heading.
  5. SAE J403: Chemical Compositions of SAE Carbon Steels. This standard covers the chemical compositions for various grades of carbon steel that might be used in cold heading wire.
  6. ISO 4954: Steels for cold heading and cold extrusion. This standard specifies the technical delivery conditions for steels intended for cold heading and cold extrusion.
  7. EN 10263: Steel rod, bars, and wire for cold heading and cold extrusion. This European standard specifies the requirements for steel rods, bars, and wire used in cold heading and cold extrusion.
  8. JIS G 3507-2: Carbon Steel Wire Rods for Cold Heading. This Japanese standard outlines the specifications for carbon steel wire rods used in cold heading processes.
  9. DIN EN 10204: Metallic Products - Types of Inspection Documents. This standard specifies the requirements for inspection documents for metallic products, which can be relevant for ensuring quality in cold heading wire.
  10. ISO 16120: Non-alloy steel wire rod for conversion to wire. This standard covers the technical delivery conditions for non-alloy steel wire rods intended for conversion to wire, which could be used in cold heading processes.

These standards ensure that the materials and processes used in cold heading wire production meet the necessary quality, safety, and performance criteria.

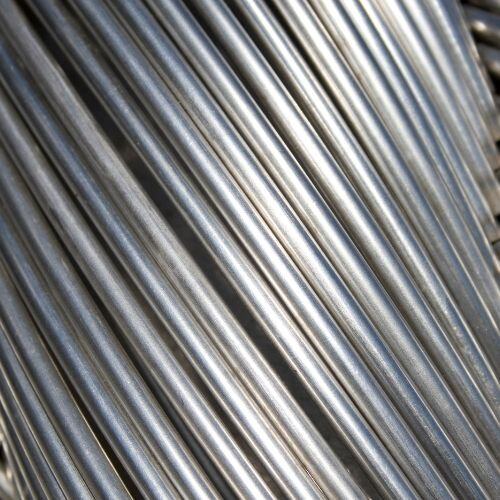

Process of Cold Heading Wire Manufacturing_Blue Chip Engineered Products (1)

Process of Cold Heading Part Manufacturing

Cold heading is a metalworking process that forms metal wire into desired shapes without heating the material. Here is an overview of the process:

  1. Material Selection: The process begins with selecting a suitable wire material, typically made from carbon steel, alloy steel, stainless steel, or other metals that exhibit good ductility and malleability.
  2. Wire Preparation: The wire is usually coated with a lubricant to reduce friction and protect the material during forming. Sometimes, the wire undergoes surface treatment to remove impurities.
  3. Cutting: The wire is cut into appropriate lengths, known as blanks, which will be formed into the final product.
  4. Forming: The blanks are fed into a cold heading machine, where a series of dies and punches strike them. The force exerted by the machine causes the material to flow and form the desired shape. This process can involve multiple steps to achieve complex geometries.
  5. Trimming and Finishing: After forming, the parts may undergo trimming to remove excess material and achieve precise dimensions. Additional finishing processes, such as threading, heat treating, or coating, can enhance the properties and performance of the final product.

Advantages of Cold Heading Parts

  1. Material Efficiency: Cold heading minimizes waste, as the material is deformed rather than cut away. This leads to better utilization of raw materials.
  2. Strength and Durability: Cold forming can enhance the material's mechanical properties, such as increasing tensile strength and hardness due to work hardening.
  3. Precision and Consistency: Cold heading allows for high precision and repeatability, producing consistent dimensions and quality parts.
  4. Cost-Effective: It is a cost-effective method for producing large quantities of small to medium-sized parts, especially when high-volume production is required.
  5. Surface Finish: The process generally results in good surface finishes, reducing the need for additional machining.

Disadvantages of Cold Heading Parts

  1. Material Limitations: Not all materials are suitable for cold heading. Materials must have sufficient ductility and malleability to undergo significant deformation without cracking.
  2. Complexity of Shapes: While cold heading is excellent for producing simple to moderately complex shapes, it may not be suitable for highly intricate designs.
  3. Tooling Costs: The initial setup and tooling costs for cold heading can be high. This makes it less economical for small production runs or custom parts.
  4. Size Limitations: Cold heading is generally limited to producing smaller parts. Larger parts may require alternative forming methods.
  5. Work Hardening: Although work hardening can be beneficial, it can also make subsequent machining or forming processes more difficult as the material becomes harder and more resistant to deformation.

When Cold Heading is a Good Selection

  • High Volume Production: When producing large quantities of fasteners or other small components.
  • Material Efficiency: When material costs are a concern, and minimal waste is desired.
  • Strength Requirements: When the application requires parts with enhanced mechanical properties due to work hardening.
  • Precision Needs: When parts need to have precise and consistent dimensions.

When Cold Heading is Not a Good Selection

  • Low Volume Production: When the production volume is too low to justify the high initial tooling costs.
  • Complex Shapes: When the part design is too intricate for the cold heading process.
  • Large Parts: When the parts are too large, they are not produced effectively by cold heading.
  • Material Restrictions: When the desired material lacks the necessary ductility and malleability for cold heading.

Understanding these factors can help determine whether cold heading is the appropriate manufacturing process for a specific application.

from print to part_ blue chip engineered products

How Blue Chip Engineered Products Can Help Engineers Source Cold-Headed Parts.

Blue Chip Engineered Products, as an ISO-certified fastener supplier, offers a range of services and benefits that can assist engineers in sourcing high-quality cold-headed parts.

Here are several ways we can help:

  1. Quality Assurance and Certification
    • ISO Certification: Blue Chip Engineered Products adhere to stringent quality management standards, ensuring fasteners meet ISO 9001:2015 requirements. This certification gives engineers confidence in the consistency, reliability, and quality of the cold-headed parts we source.
  2. Material Selection and Specification
    • Expert Consultation: Our team of experts can assist engineers in selecting the appropriate materials for cold heading, ensuring the wire meets specific mechanical properties and performance criteria.
    • Diverse Material Options: We work with manufacturers, so we can offer a variety of materials, including carbon steel, alloy steel, and stainless steel, suitable for different applications and requirements.
  3. Customization and Precision
    • Custom Cold-Headed Parts: Blue Chip Engineered Products can source custom cold-headed parts tailored to a project's specific needs. This includes designing parts to precise dimensions and specifications, ensuring they fit perfectly within the intended application.
    • Advanced Manufacturing Capabilities: Our suppliers utilize state-of-the-art cold heading machines to produce parts with high precision and consistent quality, reducing the need for further machining or adjustments.
  4. Technical Support and Problem Solving
    • Engineering Support: Our experienced engineers provide technical support throughout the sourcing and manufacturing process. We can help troubleshoot issues, optimize designs, and ensure the cold-headed wire meets all necessary performance standards.
    • R&D Collaboration: Blue Chip Engineered Products can collaborate on research and development projects to innovate and improve the performance and efficiency of cold headed parts.
  5. Cost Efficiency and Volume Production
    • High-Volume Production: Our suppliers can produce large quantities of cold-headed wire, making them ideal for projects requiring high volumes.
    • Cost-Effective Solutions: Blue Chip Engineered Products can offer competitive pricing by minimizing material waste and leveraging efficient manufacturing processes, helping engineers stay within budget.
  6. Quality Control and Inspection
    • Rigorous Testing: We employ strict quality control measures to ensure all products meet the highest standards.
    • Inspection Documents: We provide detailed inspection documents per standards like DIN EN 10204, offering full traceability and assurance of quality.
  7. Timely Delivery and Supply Chain Management
    • Reliable Supply Chain: With supply chain management, Blue Chip Engineered Products ensures timely materials delivery, reducing downtime and meeting project timelines.
    • Inventory Management: We can assist with inventory management, ensuring that engineers always have access to the necessary materials when needed.

Blue Chip Engineered Products leverages its expertise, quality assurance, and advanced manufacturing capabilities to provide engineers with high-quality, cold-headed parts solutions that meet stringent industry standards and specific project requirements.
